φ20-110mm HDPE Water Supply Pipe Making Machine

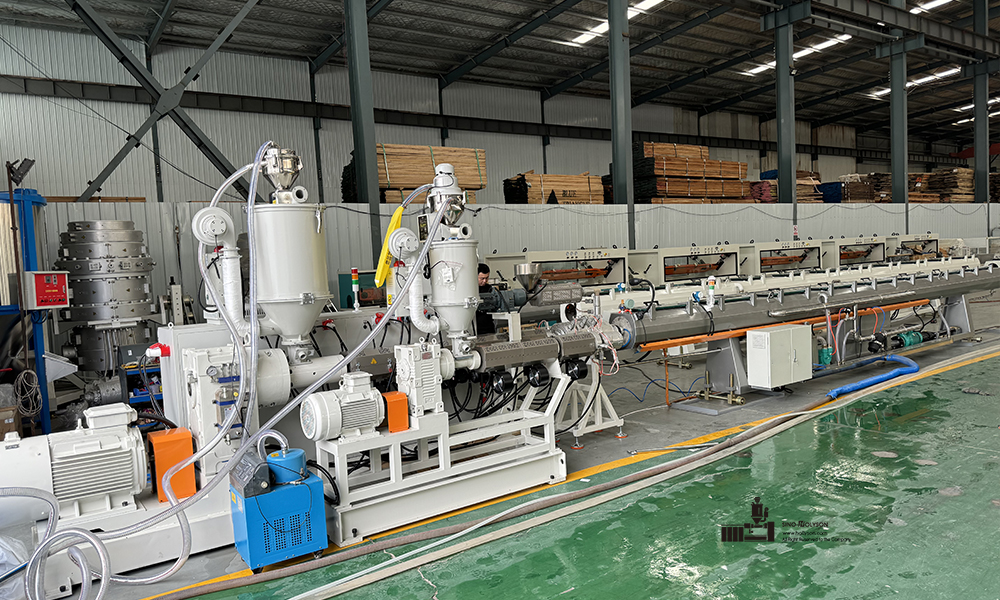

This HDPE/PP Water Supply Pipe Making Machine is designed for Egyptcian customer, which mainly for HDPE Water Supply/Irrigation pipes manufacturing. The machine is a higher speed machine. Size 20mm pipe will be able to run upto 20~30m/min. The Main Extruder is installed with 55kw driving motor, the output at about 150-180kg/hr. Screw and barrel will use 60/38 higher efficiency design, which has a long LD ratio, deep grooved design.
This is a 3-layers co-extrusion machine, mould desing is ABA, which inside use recycled material, for reducing the production cost.
Machine Working Video
MAIN COMPONENTS of full plant
| NO. | Item | Quantity |
| 1. | HSE-60/38 Higher Efficiency Single Screw Extruder(55/75kw) | 1 set |
| 1.2 | HSJ-45/30 Co-Extrusion Single Screw Extruder(11kw) | 1 set |
| 2. | Die-Head(φ20-110mm) | 1 set |
| 3. | Length 3+6m Vacuum Cooling Water Tank | 1 set |
| 4. | L-9m Bathing Cooling Water Tank | 2 sets |
| 5. | 3-Claws Haul-off/Traction Machine | 1 set |
| 6. | Automatic Non-chips Cutting Machine | 1 set |
| 7. | Pipe Discharger | 1 set |
| 8. | Double Disk Pipe Colier Machine(φ20-50mm) | 1 set |
ABA 3-Layers / AB 2-Layers Design
For more detailed introduction of this machine, please click this picture
