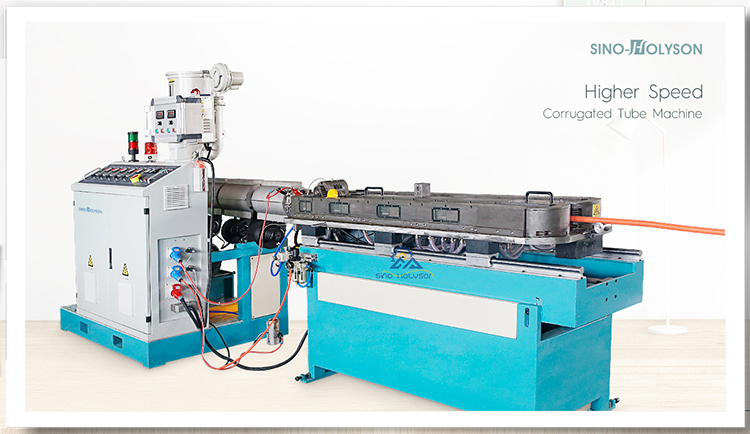

Higher Speed · Corrugated Pipe Making Machine
HSJ-65MM ·Higher Speed · HDPE Corrugated Pipe Making Machine
-- With PLC Smart Control(OPTIONAL)
Production Speed: 20-30m/min
HSJ-65 "HIGHER SPEED" Plastic Corrugated Pipe Machine This machine is widely used as ElECTRIC WIRE CONDUIT PIPE production, Shisha Hookah Hose production, Flexible Sink Corrugated Pipe production, and Washing Machine Corrugated Pipe production. The whole line consists of a HSJ-65mm Single Screw Extruder(18.5kw/22kw driving motor), Mould and die head, Forming Machine(with flexible corrugators), Auto-Tension Controller, and a Two-Station Pipe Colier.
Machine Components:

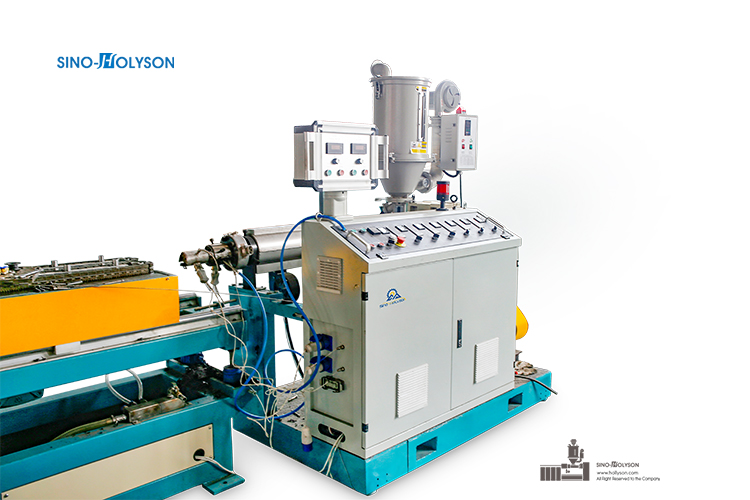

>HSJ-65 Single Screw Extruder
>Extrusion Mould + Die Head φ16~50mm
>Higher Speed Forming Machine(72Pairs Corrugators)
>Tension Controller Unit
>Double Strand Winder Machine
(Please Note: When choosing corrugated pairs, <32mm diameter, could be made by twin cavity;>40mm, should be in one cavity.)

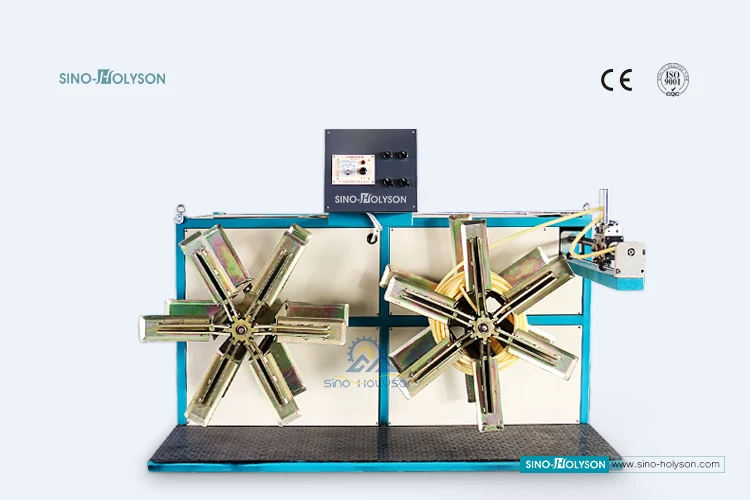

Two Station
Pipe Coiler Machine
The Two Station Pipe Winder, by using torque motor, promises stable tension controlled. The opening and closing of the winding plate are automatically controlled. The winder is equipped with two sets of alternating winding to ensure the continuity of production.
Automatic Pipe Coiler This machine max. coiling speed can reach to 30m/min, adopts torque driving motor, cooperated with guiding system. Whole machine controlling system is Smart PLC control, the cutter will be mounted on the coiler unit.
