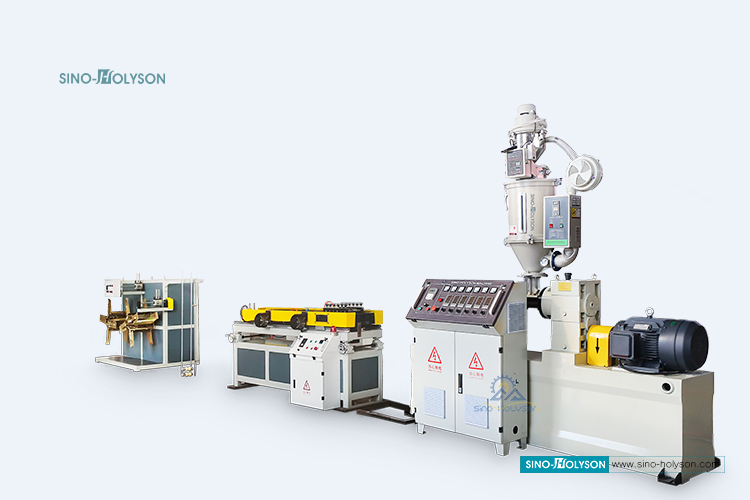

HSJ-45mm Single Wall Corrugated Pipe Making Machine

This series corrugated pipe machine can be used to produce plastic corrugated pipes of PVC, PE, PP, EVA continuously, as well as PA corrugated pipes. Plastic single-wall corrugated pipes have features of high temperature resistance,  corrosion resistance and abrasion resistabce, high intensity, good flexibility, etc.

AIM AT HIGHER QUALITY!

OUR GOAL IS ESTABLISH NEW BETTER MACHINE;

OUR RESPONSIBILITY IS TO HELP CUSTOMER WIN MARKET!

Machine List:

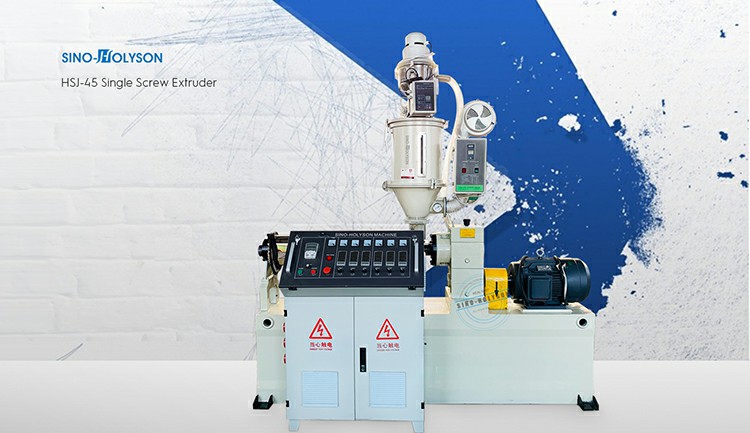

> Single Screw Extruder (HSJ-45/HSJ-65)

> Mould Die Head(Based on Diameter)

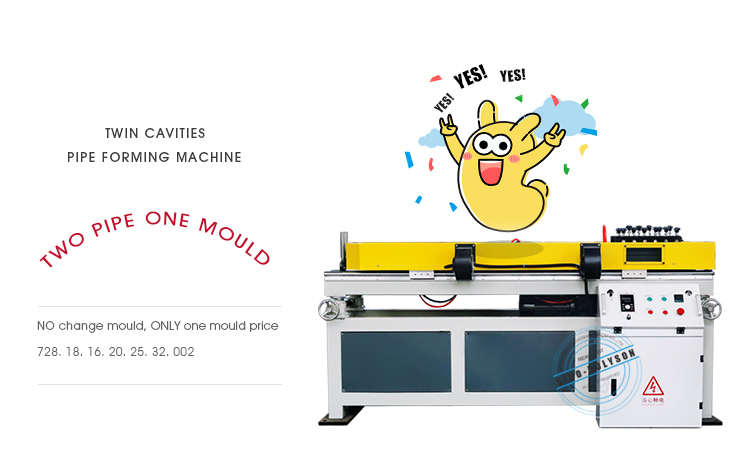

> Corrugates Forming Machine

> Double Station Winding Machine

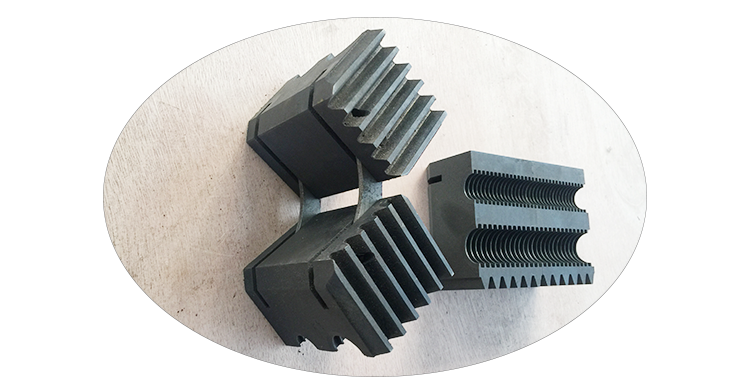

  CHAINED CORRUGATES PAIRS

By Chained Corrugated Paris, it is common regular standard machine.It doesn't have to be so strictly controlled in accuracy, so the price will be get down a lot, compare with the higher speed design. Each corrugated pairs are connected with each other by screw and plated-bolt(refer to the following picture).It's firmly and stable in production.

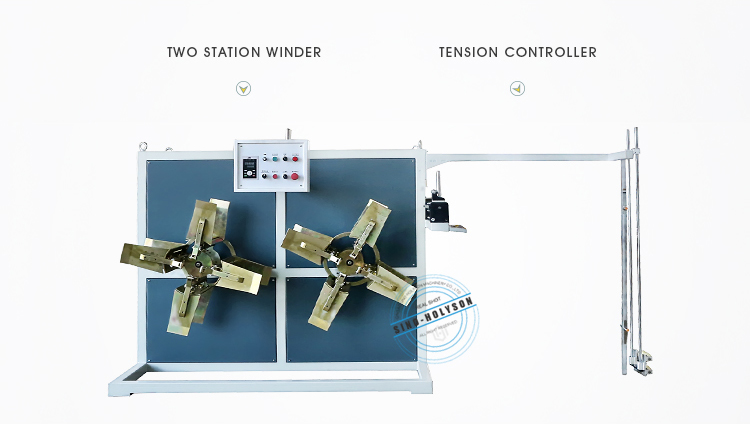

• Double Work Position Winding Machine

Pipe Winder / Coiler is mainly applicable to wind the pipe into coil. It can be used for PP/PE/PVC Corrugated Pipes, directly installed after the tractor in the production line.

The winder, by using torque motor, promises stable tension controlled. The opening and closing of the winding plate are automatically controlled, which is very easy operation, and maintance.
